Developing an advanced understanding of Au-U-C associations in the Witwatersrand Basin : using traditional and experimental techniques
Date
2017
Authors
Woods, Tremain
Journal Title
Journal ISSN
Volume Title
Publisher
Abstract
The Witwatersrand Basin is the single largest gold source ever found. Gold exhibits a strong
association with carbon and as much as 40% of the gold mined from the metasedimentary basin is
found in carbon-bearing reefs. Carbon also contains high concentrations of uranium minerals.
Although the carbon, gold and uranium association is well-documented, there is little consensus
about the formation of these associations. Thus, a detailed geological investigation was undertaken
on material from 12 carbon-bearing reefs throughout the Central Rand Group from across the
Witwatersrand Basin. Concurrently a novel experimental component of the investigation was
conducted in an attempt to simulate, for the first time ever, the Au-U-C associations in the
Witwatersrand Basin.
Petrography revealed that in more than 60 samples from carbon-bearing Witwatersrand Reefs, gold
most often occurred between carbon spindles, as minor inclusions within carbon spindles and as
coatings to the carbon forms. Furthermore, gold within the conglomerates occurred as veinlets, rims
on oxide grains, as micro-particles in phyllosilicates and secondary quartz and as inclusions in
secondary pyrite grains. These textures were interpreted as secondary features formed during
metamorphism and alteration of the Basin. Hydrocarbons displayed textures that were also
interpreted as being secondary; these included nodules that infilled interstices within the reef matrix
and multiple phases of hydrocarbon enclosed within spindles comprising carbon seams. Electron
microscope images were taken of a hydrothermal carbon nodule enclosed in cubic pyrite. The images
revealed sheet-like hydrocarbons and fibrous/tube-like forms. Critically, the hydrothermal carbon
nodule also contained micro-particulate crystalline gold and pyrite within vesicles or gas bubbles
within in the nodule. In the carbon seams, uraninite occurred within the spindles. The uraninite
appeared fragmented and displaced by hydrocarbon growth structures. Therefore, it was suggested
that uraninite was the precursor to secondary hydrocarbon and gold precipitation.
Detailed petrography revealed the textures of particulate Au-U-C associations in the Witwatersrand
Basin but elemental micro-mapping was necessary to determine the distribution of metals, major
elements, trace elements and rare earth elements within carbon seams and carbon nodules.
Carbonaceous materials were closely associated with disseminated elemental sulphur, mobile
elements and rare earth elements. The occurrence of mobile elements and sulphur disseminated
through the hydrocarbon suggested that the carbonaceous matter was formed from a fluid phase. Organic sulphur compounds in fluids derived from sedimentary organic matter are theorised to
enhance the solubility of various metals in hydrocarbon phases. The occurrence of Au, As, Ag, Ti, V,
U, Hg, Fe, Co, Cu, Cr, Mn and other metals in the hydrocarbons in the Basin indicated that a process
other than radiolytic polymerisation may have been involved in the concentration of certain metals
from a liquid phase. The similarity of metals concentrated in Witwatersrand carbonaceous matter to
those of modern day crude oils and petroleum liquids derived from the degradation of Type I
kerogens provided a potential mechanism for remobilisation in the Basin.
These observed Au-U-C associations laid the foundation for experimental simulation. Catalytic
Chemical Vapour Deposition experiments used acetylene and hydrogen gas to precipitate solid
nanocarbon materials onto uranium-bearing powders. Results showed that for increasing uranium
concentration, greater masses of carbonaceous materials were deposited onto the uranium-bearing
powders. Therefore, carbonaceous product deposition was confirmed to be correlated with uranium
concentrations. When uranium was leached out of the samples, the mass of carbon deposited was
significantly decreased. The growth of carbon started at 300°C, was physically visible at 450°C and
completely encapsulated the powders forming a product similar to Witwatersrand carbon seams at
600°C. Raman spectra indicated that the experimentally formed carbonaceous products had similar
signatures to those of Witwatersrand carbon. The simulation of C-U associations was confirmed by
electron microscopy, which showed that carbon nanotubes, carbon nanofibers and sheet-like
materials precipitated onto uraninite grains under experimental conditions. These experimentally
formed structures were comparable to those observed in Witwatersrand seam carbon, especially the
sheet-like and fibrous/tube-like materials.

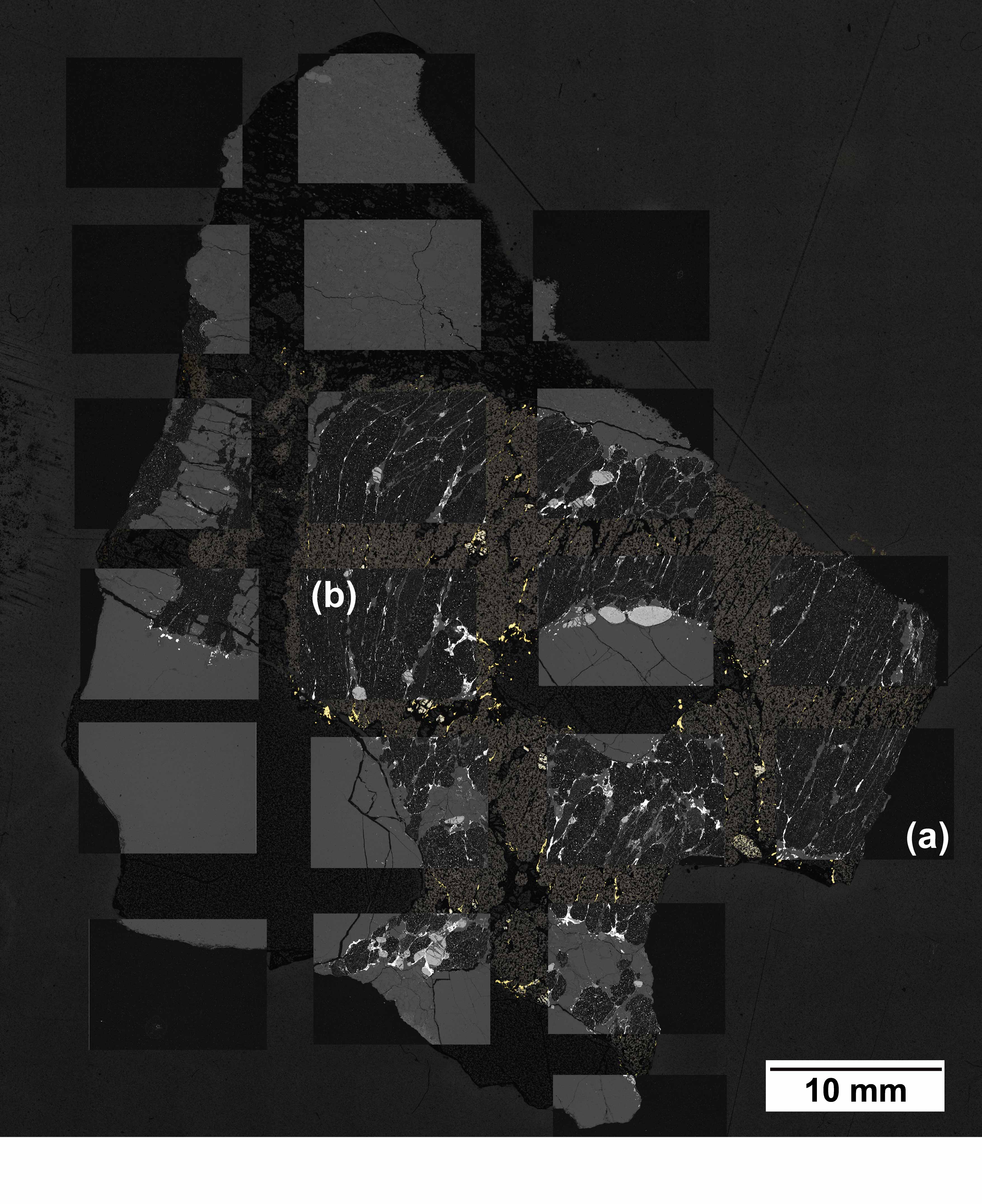

It was suspected that gold distribution in carbon seams could provide useful data for hydrocarbon
formation processes. Consequently micro-computed tomography, in conjunction with automated
electron dispersive spectra, was used to examine the distribution of gold in three dimensions. The

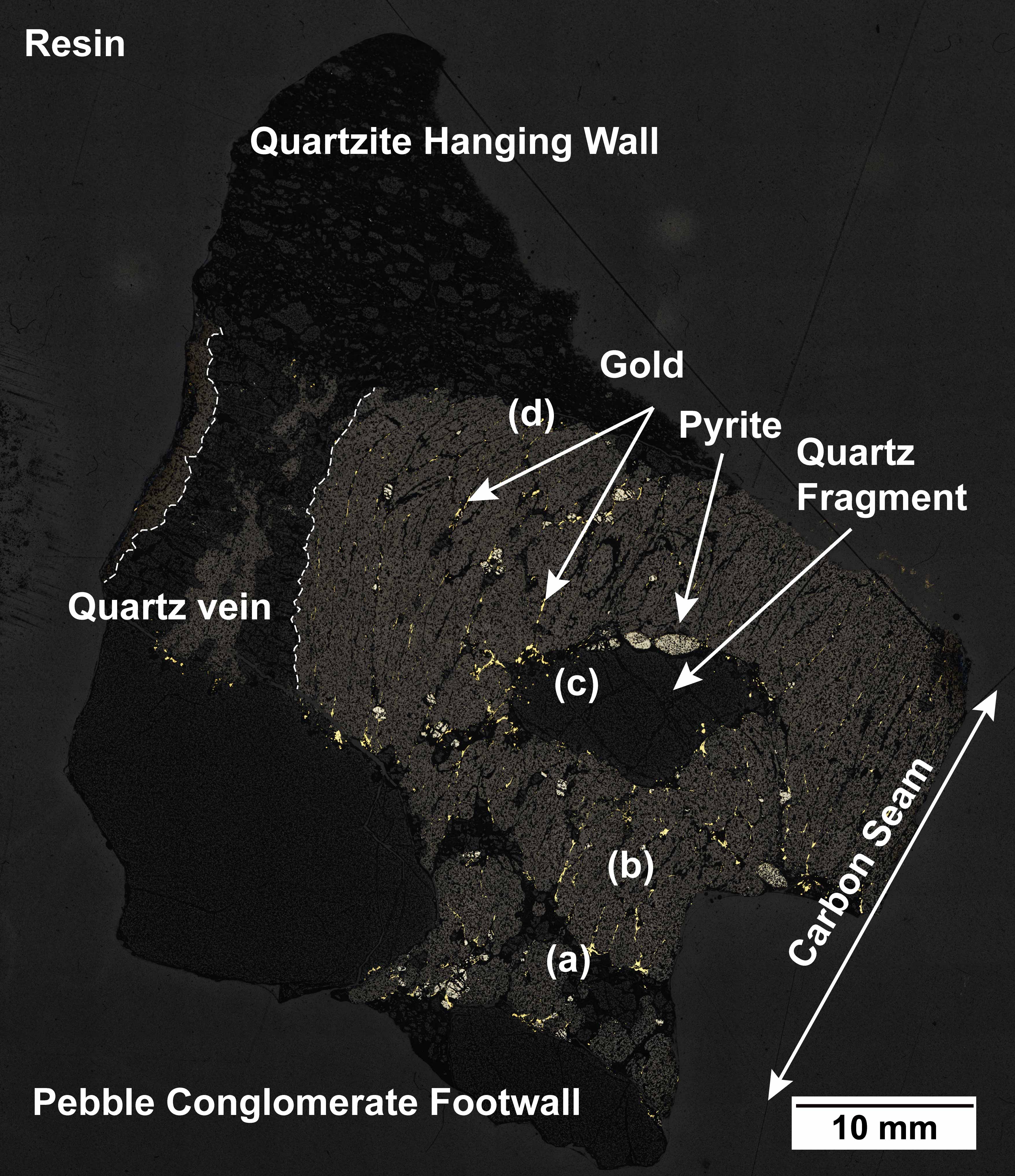

sample analysed was a carbon seam from the Carbon Leader Reef that contained exceptionally high
gold grades. Gold in this carbon seam was found to occur most concentrated between carbon
spindles in addition to small particles within spindles. Furthermore gold concentrations were highest
at the footwall and hanging wall contacts and decreased towards the centre of the seam. The
hydrocarbon spindle form also changed from bulbous at the contacts to more uniform and elongated
in the centre of the carbon seam. It was therefore suggested that hydrocarbon growth and gold crystallisation in carbon seams was akin to crystal growth in quartz veins, where spindles are
elongated parallel to the principal stress direction.
In order to experimentally simulate Au-U-C associations, gold in solution at high pressures was
required. Solvothermal experiments that used an autoclave and sucrose in solution were undertaken.
Sucrose represented a common component found in petroleum liquids derived from Type I kerogens,
similar to what is postulated for the Witwatersrand Basin. The experiments showed that
hydrocarbons could precipitate at lower temperatures compared to temperatures observed in the
Basin – c.a. 180°C. In addition, the effect of pressure was to enhance the breakdown of sucrose into
more sheet-like carbonaceous products when 800 kPa of nitrogen gas was added to the reaction
vessel. Finally, a solution of 0.01 M aurichloric acid was added to the experiments to determine if
gold in solution would be precipitated during hydrocarbon precipitation. Results showed that almost
all the gold was precipitated from solution as crystalline and nano-particulate gold. Strikingly, gold
that precipitated was enclosed by hydrocarbons and was also seen to adhere onto the surfaces of
sheet-like carbonaceous materials, indicating that the gold and hydrocarbon are intimately
associated and that hydrocarbons facilitate the precipitation of gold from solution.
Although experimental conditions could not match geological conditions exactly, the experimental
products were comparable to the Witwatersrand Au-U-C associations. The results from this research
show that catalytic electron promotion of uranium and other metals play an important role in
hydrocarbon structuring and precipitation. The model of fluid remobilisation of hydrocarbons and
gold is further enhanced by the evidence presented in this study.
In conclusion, remobilisation textures were seen in the Au-U-C associations from the Witwatersrand
Basin. Similar associations were experimentally precipitated using a hydrocarbon and gold-rich fluid
Description
A thesis submitted to the Faculty of Science, University of the Witwatersrand, Johannesburg, in fulfilment of the requirements for the degree of Doctor of Philosophy, 2017
Keywords
Citation
Woods, Tremain Hugh Encombe (2017) Developing an advanced understanding of Au-U-C associations in the Witwatersrand Basin: using traditional and experimental techniques, University of the Witwatersrand, Johannesburg, <http://hdl.handle.net/10539/23611>
